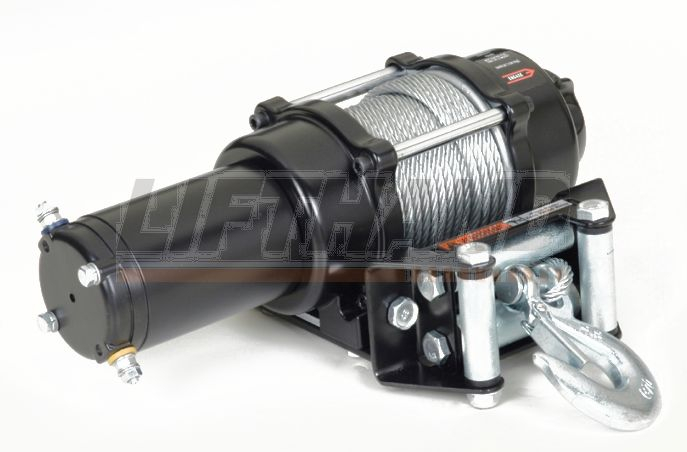

Product Description
Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Twelve sealed areas protect the winch from water and contaminant infiltration.
1) Rated Line Pull: 3500lbs. (1,587kgs) single-line
2) Motor: 12V DC, 1.4hp (1.1kw) permanent magnet
3) Control: mini-rock switch and remote control, 10ft.(3.9m) lead
4) Geartrain: sealed, all metal 3-stage planetary
5) Gear Ratio: 136:1
6) Clutch(freespooling): cam activated
7) Brake: automatic mechanical brake is available.
8) Drum Diameter/Length: 2.0”/2.9” (51mm/75mm)
9) Wire Rope: 40’,15/64” diameter (12.25m,5.8mm diam)
10) Fairlead: roller
11) Recommended Battery: 500 CCA minimum for winch
12) Battery Leads: 10 mm2 color coded wiring
13) Duty Cycle: intermittent
13) Finish: black or grey
Inner packing:
Dimensions: 40 X 28 X 17cm
N.W.:kgs
Outer packing:
2pc/carton
Carton dimensions: 41 X 29 X 36cm
Product Description
Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Twelve sealed areas protect the winch from water and contaminant infiltration.
1) Rated Line Pull: 3500lbs. (1,587kgs) single-line
2) Motor: 12V DC, 1.4hp (1.1kw) permanent magnet
3) Control: mini-rock switch and remote control, 10ft.(3.9m) lead
4) Geartrain: sealed, all metal 3-stage planetary
5) Gear Ratio: 136:1
6) Clutch(freespooling): cam activated
7) Brake: automatic mechanical brake is available.
8) Drum Diameter/Length: 2.0”/2.9” (51mm/75mm)
9) Wire Rope: 40’,15/64” diameter (12.25m,5.8mm diam)
10) Fairlead: roller
11) Recommended Battery: 500 CCA minimum for winch
12) Battery Leads: 10 mm2 color coded wiring
13) Duty Cycle: intermittent
13) Finish: black or grey
Inner packing:
Dimensions: 40 X 28 X 17cm
N.W.:kgs
Outer packing:
2pc/carton
Carton dimensions: 41 X 29 X 36cm
