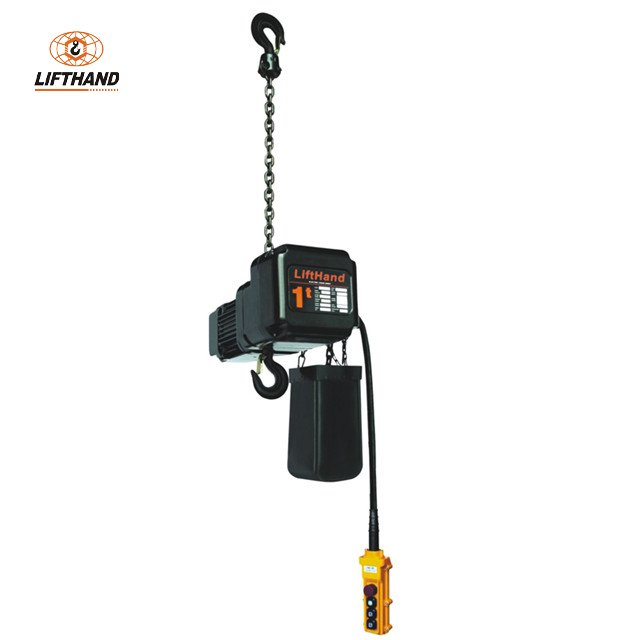

Mini Stage Hoist electric chain hoist 220V/50Hz,1PHASE
Electric truss hoist for large performence stage lighting hoist with 20M lifting
The stage chain hoists are designed to handle stage and theatrical equipment and enable the safe and accurate positioning of speakers, lighting systems, stage sets, and sceneries. There are diverse models to meet each need.
Product Description
1. Truck load: 500kg, 1000kg, 2000kg
2. Improve speed: 4 m / min, 8 m / min, 16 m / min
3. Lifting speed: 26 meters or 85 feet to a standard height, the concrete can be customized according to customer requirements, up to 40 meters or 131 feet
4. Versatile: Suitable for 230 volts to 460 volts 3-phase
5. Light weight: Tensile steel shell
6. Use efficiency: Lifting its unique five-hole wheel, so that the chain improve balance
7. Reliability: Hoist clutch with overload protection, overload protection in the event of the operator's safety and product from damage
8. Safety: Life maintenance, and provide parts and technical support
Stage electric chain hoist Parameters:
| Capacity(KG) | Model | Power(kw) | No. of load chain | Lift speed(m/min) | Weight of hoist without load chain(kg) | Weight of Load chain(Kg/m) | Voltage |
| 500 | HHD-500 | 0.40 | 1 | 6 | 23 | 0.76 | 380V
220V
3Phase
|
| 1000 | HHD-A1000 | 2.0 | 1 | 2 | 35 | 1.37 |
| 1000 | HHD-B1000 | 0.8 | 1 | 5 | 38 | 1.37 |
| 2000 | HHD-2000 | 1.1 | 1 | 4 | 49 | 2.1 |
1.Introduction of Best Price 0.5ton Electric Stage Chain Hoist
Advantages of electric stage chain hoist:
1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel
2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.
3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.
4. Protection grade: IP54, work grade: M3
5.Over load limit is available. Hook is widen and thicken
6. Power-Off protection, Emergency stop system.
Application of electric stage hoist:
7. Hoist Crane Price can travel rotation through the trolley hanging on the I-steel,and install on the single beam crane,gantry crane,jib crane and overhead crane to rise and fall the cargos. So it can be used in factories, mines, wharf, warehouse,freightyards,and shops and so on which need lifting equipment for lifting heavy objects.
Safety Features of electric stage chain hoist :
8. Fire stopper:Adjustable mechanical memory structure,high sensitivity
Weight limiting stopper:preventing hook clashing the top, sensitive reaction. Safe and durable, easy to install and debug
Overload limiter:Preset related data according working condition,show accurate weight;value clearly .Modular,low power design
