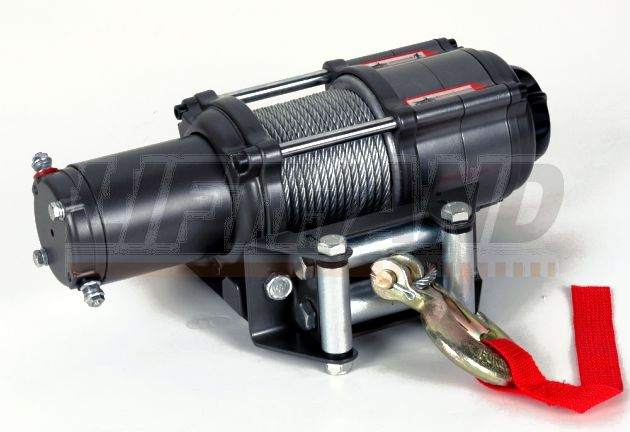

Car Suv Electric Winch

Product Description

Specifications:

All Metal Drivetrain.

Sealed Drivetrain & Motor. Twelve sealed areas protect the winch from water and contaminant infiltration.

1) Rated Line Pull: 4000lbs. (1,814kgs) single-line

2) Motor: 12V DC, 1.6hp (1.2kw) permanent magnet

3) Control: mini-rock switch and remote control, 10ft. (3.9m) lead

4) Geartrain: 3-stage planetary

5) Gear Ratio: 136:1

6) Clutch(freespooling): cam activated

7) Brake: automatic mechanical brake is available.

8) Drum Diameter/Length: 2.0”/2.9” (51mm/75mm)

9) Wire Rope: 40’,15/64” diameter (12.25m,6.0 mm diam)

10) Fairlead: roller

11) Recommended Battery: 500 CCA minimum for winch

12) Battery Leads: 12 mm2 color coded wiring

13) Duty Cycle: intermittent

14) Finish: black or grey

Inner packing:

Dimensions: 40 X 28 X 17cm

N.W.:kgs

Outer packing:

2pc/carton

Carton dimensions: 41 X 29 X 36cm

G.W./N.W.: 30/29kgs
