LHHG
LIFTHAND

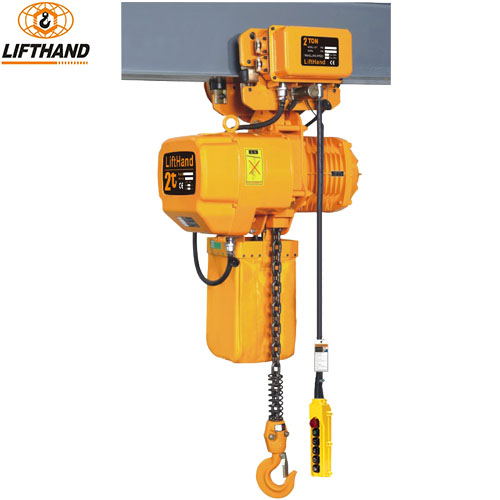

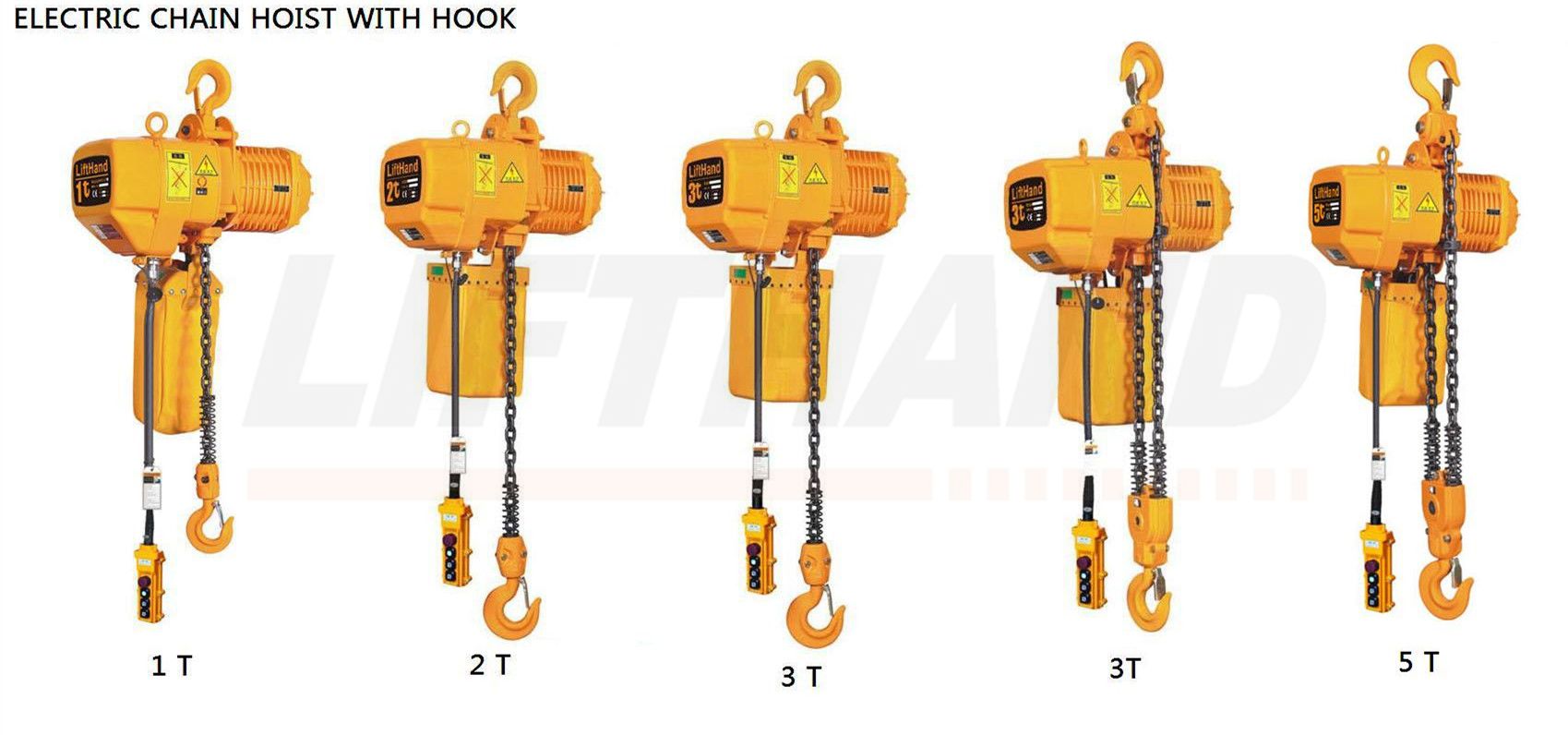

ER Series Chain Hoist
Single speed, Dual VFD Speeds Hoist
Single speed, Dual VFD Speeds Trolley
2 years warranty (excluding wearing parts)
Classification: 2m
NEMA Class F Motor
Electromagnetic Motor Brake
60% Duty Rating
Limit Switch
Build-in Overload Protection
24V, 36V or 48V control
360° Swivel Hook
IP65 Pendant Control
Remote Control (optional)
| Product Code | Capacity | Lifting Speed(m/min) | Lifting Motor | Traversing Speed(m/min) | Traversing Motor | Load Chain(mm) | I Beam | ||
| | | 50HZ | 60HZ | | 50HZ | 60HZ | | | |
| SK01-01 | 1 | 7.2 | 7.9 | 1.1 | 11 or 21 | 12 or 24 | 0.4 | φ8.0 | 80-160 |
| SK02-01 | 2 | 4.4 | 4.8 | 1.5 | 11 or 21 | 12 or 24 | 0.4 | φ10.0 | 82-178 |
| SK02-02 | | 3.6 | 3.9 | 1.1 | 11 or 21 | 12 or 24 | 0.4 | φ8.0 | 82-178 |
| SK03-01 | 3 | 5.4 | 5.9 | 3.0 | 11 or 21 | 12 or 24 | 0.4 | φ11.2 | 100-180 |
| SK03-02 | | 2.2 | 2.4 | 1.5 | 11 or 21 | 12 or 24 | 0.4 | φ10.0 | 100-180 |
| SK05-02 | 5 | 2.7 | 3 | 3.0 | 11 or 21 | 12 or 24 | 0.75 | φ11.2 | 110-180 |
| SK7.5-03 | 7.5 | 1.8 | 2.1 | 3.0 | 11 or 21 | 12 or 24 | 0.75 | φ11.2 | 120-180 |
| SK10-04 | 10 | 2.8 | 3.3 | 3.0×2 | 11 or 21 | 12 or 24 | 0.75 | φ11.2 | 150-220 |
| SK15-06 | 15 | 1.9 | 2.1 | 3.0×2 | 11 or 21 | 12 or 24 | 0.75*2 | φ11.2 | 150-220 |
| SK20-08 | 20 | 1.4 | 1.6 | 3.0×2 | 11 or 21 | 12 or 24 | 0.75*2 | φ11.2 | 150-220 |
