Features
1. Compact and high efficient motor, low power consumption
2. Hoist body pressing steel structure, high strength body, light and compact
3. Most tensile safety hooks: both the top and bottom hooks are made of high tensile alloy steel with special treatment; It guarantees the hook will not break and deform gradually under a sudden extra-load
4. Compact and beauty chain container: high strength plastic container has outstanding durability
5. Limit switch devices fitted at both top and bottom ends: switch off power automatically to prevent load chain from running out

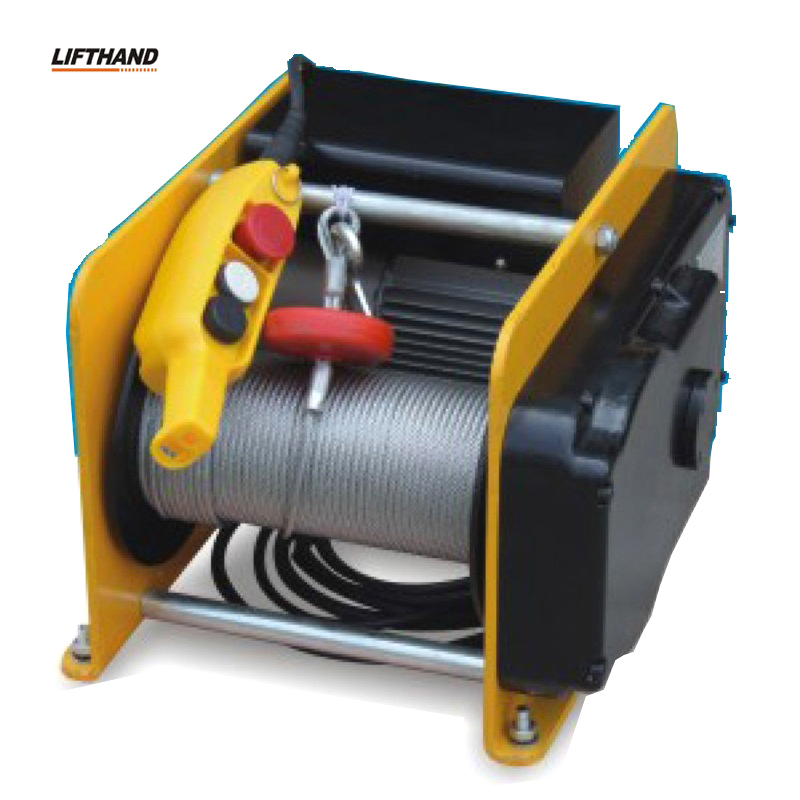

Specification of electric winch
| Capacity | wire rope length | lifting speed | Motor | Power | N.W/G.W | Packing size |
| KG | M | M/MIN | KW | KG | CM | |
| 300 | 30 | 30 | 380V 3P | 0.8 | 34/38 | 56x24x34 |
| 400 | 30 | 30 | 380V 3P | 1.5 | 36/40 | 56x24x34 |
Features
1. Compact and high efficient motor, low power consumption
2. Hoist body pressing steel structure, high strength body, light and compact
3. Most tensile safety hooks: both the top and bottom hooks are made of high tensile alloy steel with special treatment; It guarantees the hook will not break and deform gradually under a sudden extra-load
4. Compact and beauty chain container: high strength plastic container has outstanding durability
5. Limit switch devices fitted at both top and bottom ends: switch off power automatically to prevent load chain from running out
Specification of electric winch
| Capacity | wire rope length | lifting speed | Motor | Power | N.W/G.W | Packing size |
| KG | M | M/MIN | KW | KG | CM | |
| 300 | 30 | 30 | 380V 3P | 0.8 | 34/38 | 56x24x34 |
| 400 | 30 | 30 | 380V 3P | 1.5 | 36/40 | 56x24x34 |
