Industrial Lever Hoist

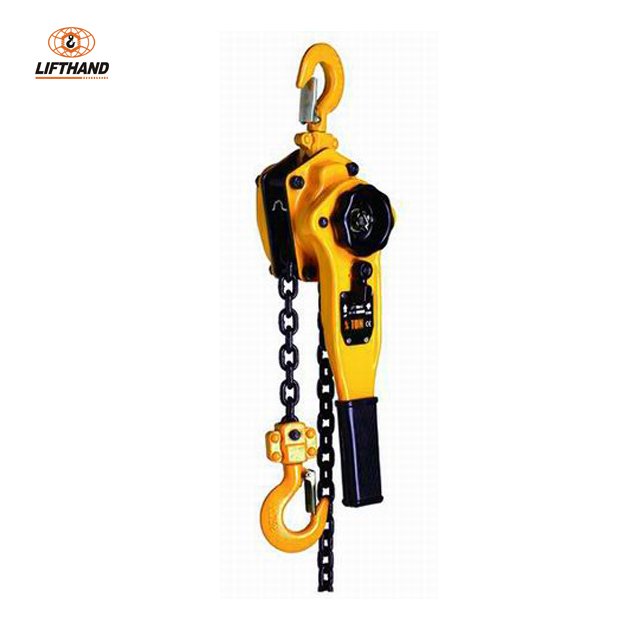

LiftHand LHA lever block is with good quality in a new compact design. It features the “free-wheeling” braking system which enables fast and easy operation. There is a minimum load requirement of 10% of the Working Load Limit to ensure that the braking system remains operative and continues to support the load. These lever blocks are ideally suited for the shipbuilding, construction, mining and power transmission industries.
Quantity:
Inquiry Add to Inquiry

  • LHB

  • LIFTHAND

  • Lever block Specificaion:
    Model LH-A 75 100 150 200 300 600
    Capacity(t) 0.75 1 1.5 2 3 6
    Standard Lifting Height(m) 1.5 1.5 1.5 1.5 1.5 1.5
    Running Test Load  1.13 1.5 2.25 3 4.5 9
    Pulling Efforts(kg) 14 16 22 26 32 34
    Chainfall 1 1 1 1 1 2
    Load Chain Diameter(mm) 6 6 8 8 10 10
    Net Weight 6.2 6.5 10.8 11.2 18.5 32.5
    Dimensions (mm)   A 148 148 172 172 195 195
    B 280 280 410 410 410 410
    C 45 48 52 30 66 80
    D 96 96 110 110 145 145
    E 325 325 380 380 480 480
