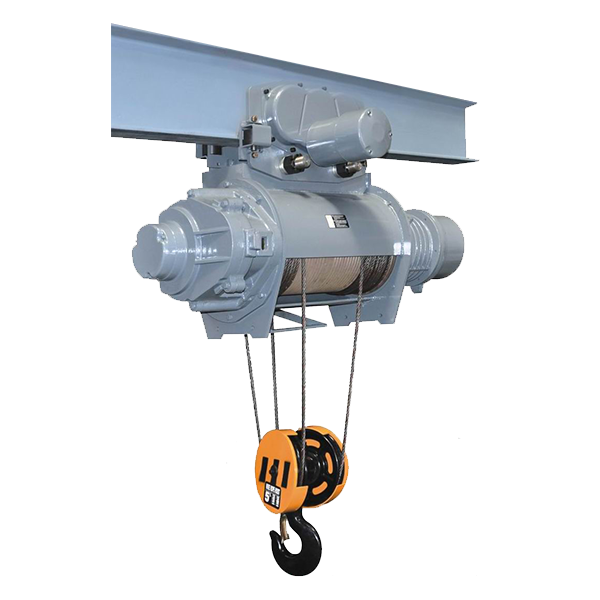

Low Headroom Wire Rope Hoist

hitachi electric wire rope hoist

Quantity:



Inquiry Add to Inquiry

Brand:
LIFTHAND

Product Description

HT series Cable Hoist:
Highly Reliable Braking System
The hoist detects the amount of lining abrasion. The brake is equipped with an automatic adjusting device to apply brake torque in proportion to the amount of lining abrasion
Hoisting Motor with a Thermal Protector
The hoisting motor automatically stops when sensing the heat of the motor coil in order to protect the motor from burning damage caused by heat due to overwork
Efficient Maintenance is Possible
The starting time counter in the control box facilitates checking of the lifetime of consumable parts.
The gear inspection window in the control box allows visual checks of the condition of the gear teeth surface and lubrication to some degree.
The punch mark on the hook indicates the reference point for the hook inspection of deformation
The inspection of the rope end is easy.

Specifications
Model			1LF	2LF	3LF	5LF	7.5LF	10LF	15LF	20LF
Capacity（t）			1	2	3	5	7.5	10	15	20
Lifting height（m）			6m \| 12m	6m \| 12m	6m \| 12m	8m \| 12m	8m \| 12m	8m \| 12m	8m \| 12m	8m \| 12m
Hoist	Lifting speed （m/min）	50Hz	11	6	7.5	6.7	6.7	5	2.5	2.5
	Lifting speed （m/min）	60Hz	13	7	9	8	8	6	3	3
	Power（kw）	50Hz	3	3	5.5	7.5	9	11	8*2	8*2
	Power（kw）	60Hz	3	3	5.5	7.5	9	11	8*2	8*2
	Motor	Current	6.44	6.44	12.8	15.6	19	22	16	18
	Motor	No.of poles	4	4	4	4	4	4	4	4
Trolley	Traversing speed （m/min）	50Hz	11 \| 21	11 \| 21	11 \| 21	11 \| 21	11 \| 21	11 \| 21	11 \| 21	11 \| 21
	Traversing speed （m/min）	60Hz	13 \| 25	13 \| 25	13 \| 25	13 \| 25	13 \| 25	13 \| 25	13 \| 25	13 \| 25
	Power（kw）	50Hz	0.4	0.4	0.4	0.75	0.75	0.75*2	0.75*2	0.75*2
	Power（kw）	60Hz	0.4	0.4	0.4	0.75	0.75	0.75*2	0.75*2	0.75*2
	Motor	Current	1.5	1.5	1.5	2.2	2.2	2.2	2.2	2.2
	Motor	No.of poles	4	4	4	4	4	4	4	4
	Min.curve radius（m）		1.5	1.8	2.0	3.0	Straight	Straight	Straight	Straight
Wire Rope	No.of falls（pcs）		2	2	2	4	4	4	4	4
	Composition		6×（19）-B+FC	6×（37）-B+FC	6×（37）-B+FC	6×（37）-B+FC	6×（37）+FC	6×（37）+FC	6×（39）+1	6×（37）+1
	Diameter（mm）		Ф8	Ф12	Ф14	Ф12	Ф14	Ф15.5	Ф20	Ф20
Power supply			220V--600V/3Phase/50Hz or 60Hz
Control voltage			24V/36V/48V/110V
