| Quantity: | |
|---|---|
LMR
LIFTHAND
PA
100kg -1000kg
single phase power

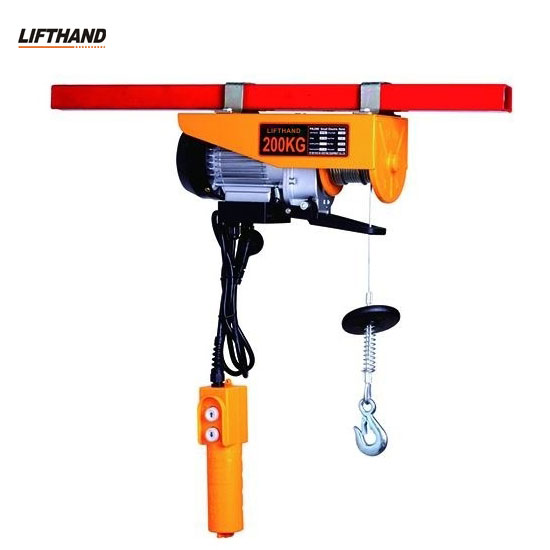

PA Mini Electric hoist
Parameter:
| Model | Method of use | Lifing Speed (m\min) | Input power (W) | Rated capacity (kg) | Rating volt (v) | Lifing height (m) | N\G Wt. (kg) | Packing size (cm) |
| PA200A | single-hook | 10 | 480 | 100 | AC 220\230\240 50\60Hz | 12 | 22\24 | 47×37×16 |
| Double-hook | 5 | 200 | 6 | |||||
| PA250A | single-hook | 10 | 510 | 125 | 12 | 22\24 | 47×37×16 | |
| Double-hook | 5 | 250 | 6 | |||||
| PA300A | single-hook | 10 | 600 | 150 | 12 | 23\25 | 47×37×16 | |
| Double-hook | 5 | 300 | 6 | |||||
| PA400A | single-hook | 10 | 950 | 200 | 12 | 33\35 | 52×42×17 | |
| Double-hook | 5 | 400 | 6 | |||||
| PA500A | single-hook | 10 | 1020 | 250 | 12 | 33\35 | 52×42×17 | |
| Double-hook | 5 | 500 | 6 | |||||
| PA600A | single-hook | 10 | 1200 | 300 | 12 | 33\35 | 52×42×17 | |
| Double-hook | 5 | 600 | 6 | |||||
| PA800A | single-hook | 8 | 1300 | 400 | 12 | 37\39 | 52×42×17 | |
| Double-hook | 4 | 800 | 6 | |||||
| PA1000A | single-hook | 8 | 1600 | 500 | 12 | 32\33 | 56×25×35 | |
| Double-hook | 4 | 1000 | 6 | |||||
| PA1200A | single-hook | 8 | 1800 | 600 | 12 | 32\33 | 56×25×35 | |
| Double-hook | 4 | 1200 | 6 |
PA Mini Electric hoist
Parameter:
| Model | Method of use | Lifing Speed (m\min) | Input power (W) | Rated capacity (kg) | Rating volt (v) | Lifing height (m) | N\G Wt. (kg) | Packing size (cm) |
| PA200A | single-hook | 10 | 480 | 100 | AC 220\230\240 50\60Hz | 12 | 22\24 | 47×37×16 |
| Double-hook | 5 | 200 | 6 | |||||
| PA250A | single-hook | 10 | 510 | 125 | 12 | 22\24 | 47×37×16 | |
| Double-hook | 5 | 250 | 6 | |||||
| PA300A | single-hook | 10 | 600 | 150 | 12 | 23\25 | 47×37×16 | |
| Double-hook | 5 | 300 | 6 | |||||
| PA400A | single-hook | 10 | 950 | 200 | 12 | 33\35 | 52×42×17 | |
| Double-hook | 5 | 400 | 6 | |||||
| PA500A | single-hook | 10 | 1020 | 250 | 12 | 33\35 | 52×42×17 | |
| Double-hook | 5 | 500 | 6 | |||||
| PA600A | single-hook | 10 | 1200 | 300 | 12 | 33\35 | 52×42×17 | |
| Double-hook | 5 | 600 | 6 | |||||
| PA800A | single-hook | 8 | 1300 | 400 | 12 | 37\39 | 52×42×17 | |
| Double-hook | 4 | 800 | 6 | |||||
| PA1000A | single-hook | 8 | 1600 | 500 | 12 | 32\33 | 56×25×35 | |
| Double-hook | 4 | 1000 | 6 | |||||
| PA1200A | single-hook | 8 | 1800 | 600 | 12 | 32\33 | 56×25×35 | |
| Double-hook | 4 | 1200 | 6 |
