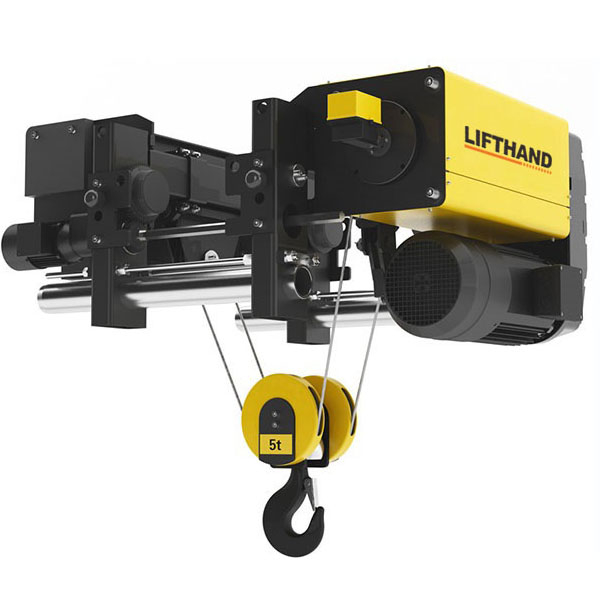

DG series Electric Wire Rope Hoist from 1Ton to 100Ton
Product Advantage:
Compact structure, light self-weight and small wheel-pressure
Save operating costs
High quality components with safety and reliability and durable in use
Precise positioning and efficient running can improve production efficiency
Running monitoring and efficient maintenance
Modular design and multiple options meet various requirements
Features:
1t to 32t double speeds lifting motor,32t to 100t variable speeds driven lifting motor
Lifting electromagnetic disc brake and maintenance-free design
Lifting limit switch
Variable speeds driven traveling motor with the speed of 5- 20m/min
Protection grade of motor is IP55, and insulation grade is F
Lifting hook group with security latch
lifting load limiter
ED rating of lifting motor is 60%
Running monitoring record
Modular design
Lifting drive unit
Reducer, lifting motor and brake design—Three in one
Big lifting torque, small volume, smooth traveling and small impact force
Low noise, small energy consumption and long use life
ED rating is 60%,meeting the requirement of frequent lifting
The service life of Asbestos-free brake can be up to one million times
The high protection grade of brake can meet the requirements in severe environment
The brake torque is two times of motor rated torque.
The manual release, encoder and special match is also available for choose.
Trolley drive unit
Three in one structure of motor, reduction gearbox and brake.
Compact structure, smooth traveling.
Aluminum alloy shell, fast heat dissipation and long use life
Variable frequency control, smooth running, low impact and noise
Asbestos-free brake disc and its normal service lift can be up to one million times.
LiftAid safety monitors
The monitor can record the running time of hoist, the times of overload, etc to be convenient for the maintenance.
The remind function of regular maintenance and the wearing alarm function of friction lining
The interface is intelligent, and the function extending is available
Lifting height limiter
Freely adjustable screw lifting height limiter with high precision, wide adjustment range, safe and reliable.
Brake
Automatic adjustment on brake clearance, anti-dust design, asbestos-free brake lining, quick action, high reliability.
Specifications of low headroom wire rope hoist | | | | | | | |
Capacity | FEM | ISO | Height | Lifting speed | Trolley speed | H size | C size |
(m) | (m/min) | (m/min) | (mm) | (mm) | |||
1000 | 4m | M7 | 6/9/12/18 | 0.8/5.0 | 5-20 | 245 | 385 |
1250 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5-20 | 245 | 385 |
1600 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5-20 | 245 | 385 |
1600 | 4m | M7 | 6/9/12/18 | 1.3/8.0 | 5-20 | 245 | 385 |
2000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5-20 | 245 | 385 |
2000 | 3m | M6 | 6/9/12/18 | 1.3/8.0 | 5-20 | 245 | 385 |
2500 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5-20 | 245 | 385 |
2500 | 3m | M6 | 6/9/12/18 | 1.0/6.3 | 5-20 | 245 | 385 |
2500 | 2m | M5 | 6/9/12/18 | 1.3/8.0 | 5-20 | 245 | 385 |
3200 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5-20 | 245 | 385 |
3200 | 2m | M5 | 6/9/12/18 | 1.0/6.3 | 5-20 | 245 | 385 |
5000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5-20 | 266 | 495 |
5000 | 2m | M5 | 6/9/12/18 | 1.6/10 | 5-20 | 296 | 792 |
5000 | 3m | M6 | 6/9/12/18 | 1.3/8.0 | 5-20 | 296 | 792 |
6300 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5-20 | 266 | 495 |
6300 | 1Am | M4 | 6/9/12/18 | 1.3/8.0 | 5-20 | 266 | 495 |
6300 | 2m | M5 | 6/9/12/18 | 1.3/8.0 | 5-20 | 266 | 495 |
6300 | 3m | M6 | 6/9/12/18 | 1.0/6.3 | 5-20 | 266 | 495 |
8000 | 1Am | M4 | 6/9/12/18 | 1.3/8.0 | 5-20 | 296 | 792 |
8000 | 3m | M6 | 6/9/12/18 | 0.8/5.0 | 5-20 | 296 | 792 |
10000 | 1Am | M4 | 6/9/12/18 | 1.0/6.3 | 5-20 | 296 | 792 |
10000 | 2m | M5 | 6/9/12/18 | 0.8/5.0 | 5-20 | 296 | 792 |
10000 | 3m | M6 | 6/9/12/18 | 0.66/4.0 | 5-20 | 296 | 792 |
12500 | 1Am | M4 | 6/9/12/18 | 0.8/5.0 | 5-20 | 296 | 792 |
12500 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5-20 | 296 | 792 |
12500 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5-20 | 296 | 792 |
16000 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5-20 | 400 | 920 |
20000 | 2m | M5 | 6/9/12/18 | 0.6/4.0 | 5-20 | 400 | 920 |
