LIFTHAND

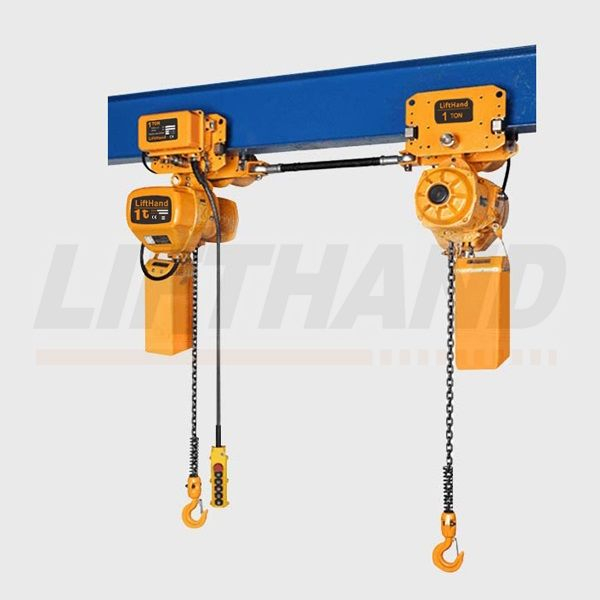

Twin hook electric chain hoist
double hook electric chain hoist capacity from1ton to 5ton .
All electric chain hoist have passed CE certification .
Aluminum alloy shell , light but hard .
G80 , G100 load chain or FEC 80 chain from Japan optional.
Hook: be hot forged with perfect strength , hard to break .
Push button, remote control :
Electric chain hoist can be equipped with rain cover , travel limiter , overload limiter
| Technical Parameters | | | | | | | | | ||
| Product Code | Capacity (t) | Lifting Speed(m/min) | Lifting Motor | Traversing Motor | I Beam (mm) | Power supply | Load Chain (mm) | |||
| 50HZ | 60HZ | Output (kw) | Rating (%ED) | Output (kw) | Rotation speed (r/min) | |||||
| HSK0.5 | 250kg+250kg | 7.8 | 9.2 | 0.75 | 40 | 0.4 | 1440 | 80-160 | 220-525V/3P | φ6.3 |
| HSK01 | 500kg+500kg | 6.8 | 8.4 | 1.5 | 40 | 0.4 | 1440 | 80-160 | 220-525V/3P | φ8.0 |
| HSK02 | 1t+1t | 5.6 | 6.4 | 1.5 | 40 | 0.4 | 1440 | 82-178 | 220-525V/3P | φ8.0 |
| HSK03 | 1.5t+1.5t | 5.6 | 6.4 | 3 | 40 | 0.4 | 1440 | 100-180 | 220-525V/3P | φ11.2 |
| HSK05 | 2.5t+2.5t | 2.7 | 3.3 | 3 | 40 | 0.75 | 1440 | 110-180 | 220-525V/3P | φ11.2 |
